A2 PVDF Aluminum Non-combustible Panel

Products

A2 PVDF Aluminum Non-combustible Panel

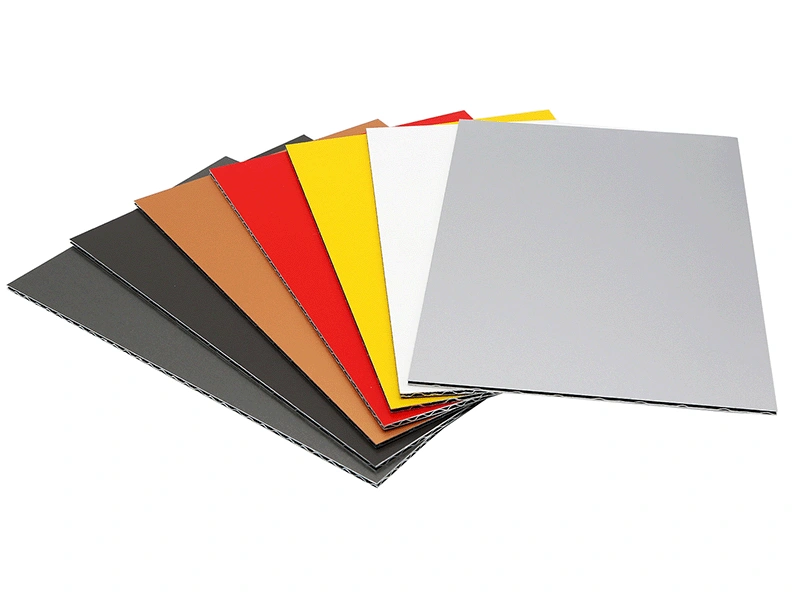

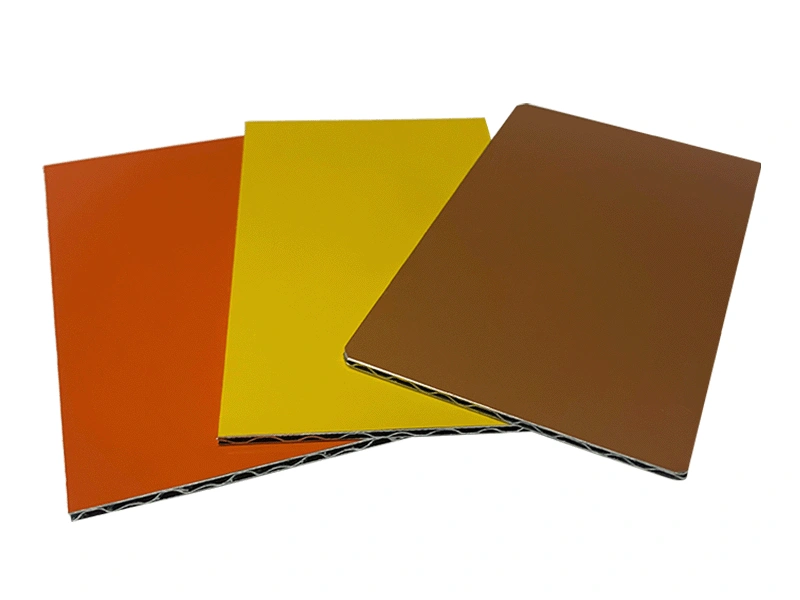

The aluminum non-combustible panel is a lightweight, durable, and highly rigid aluminum decorative panel perfect for all uses in architecture, transportation, furniture, and landmark buildings. It works great for both exterior and interior wall walls or home decoration
Our aluminum panels are 2.5 to 6.0 mm thick and consist of a non-combustible metal core laminated between two layers of different thicknesses of aluminum skin.
It's reached the A2 fire level, passed ASTM-E84, EN13501, the AS1530 fire test, and got certified.

Parameters Key Benefits Color sample Project Certificate Contact Us

Parameters

Our ANP (Aluminum Non-Combustible Panel) is a 4mm thick Aluminium Core Panel that is completely non-combustible and suitable for internal and external applications where a non-combustible facade solution is required. It also has got certificates from Australian Standards, European Standards, and US Standards.

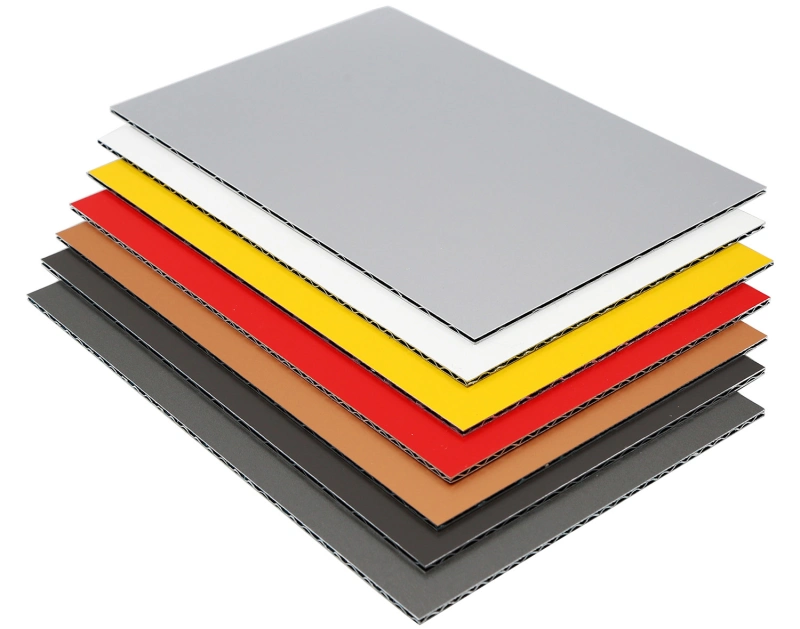

Our ANP is made of high-quality aluminum and has an ‘egg carton type’ aluminum core that separates the shell. Unlike other non-combustible and fireproof panels, we does not require the use of mineral core fillers to achieve fire resistance, so it is lighter in weight and has comparable or better structural strength.
During the manufacturing process, we precoat a 3-coat PVDF coating to the surface. And we offer a wide range of standard colors and can also provide customized coatings that match specific color requirements.

PRODUCT SPECIFICATION

ITEM	DESCRIPTION
Product Usage	Fully non-combustible and suitable for external applications
Material	Aluminum alloy 5052, 3003,1100 etc.
Fire Behaviour	A2 Fire Safety (EN 13501-1:2018)
Regular Size	1250x2500mm,1550x3200mm
Standard Width	1250 mm / 1550 mm
Length	Max 6000 mm
Overall Thickness	Regular thickness: 4.0 mm (2.5 - 6.0 mm available)

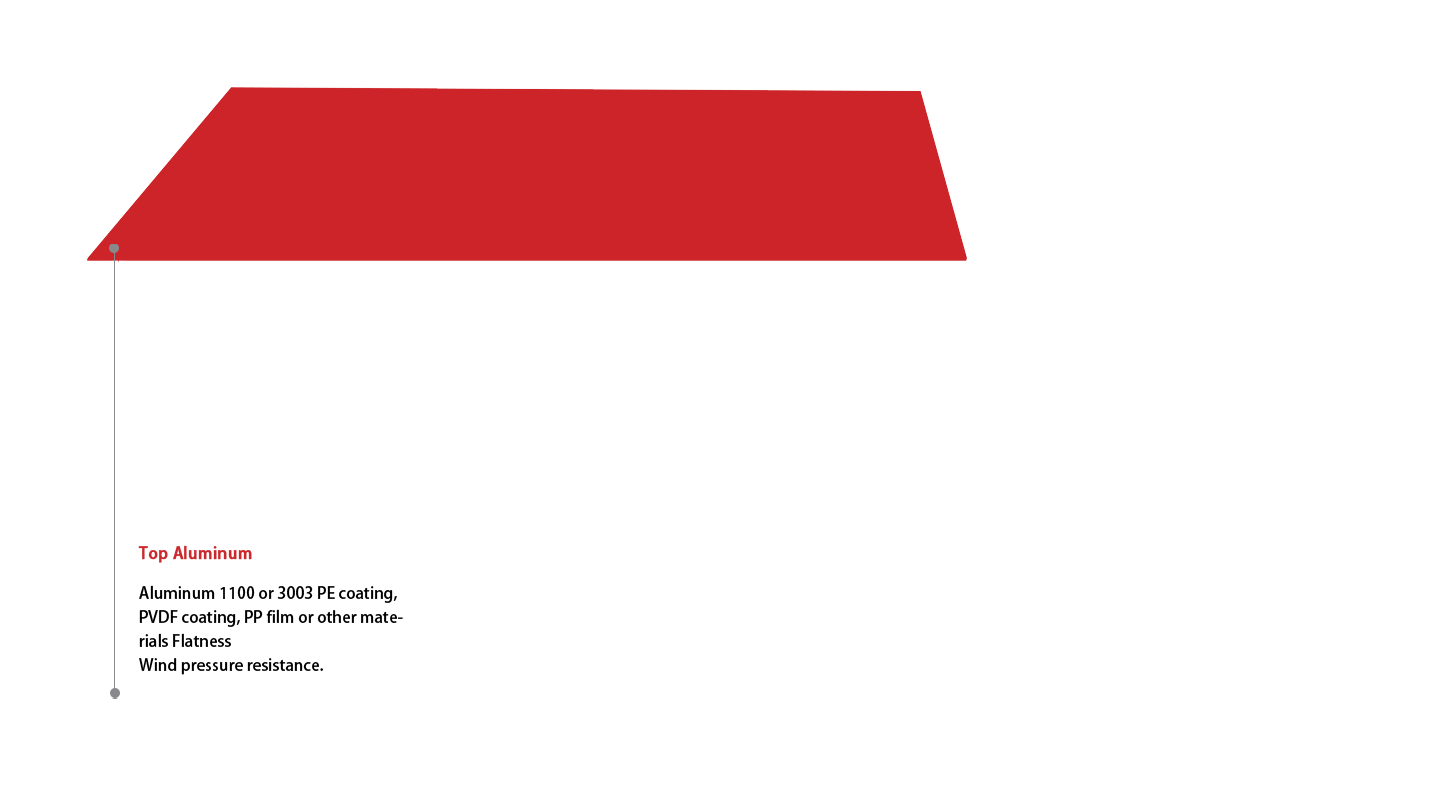

Top Aluminum Thickness	0.5mm-0.7mm
Weight	4.54kg / ㎡ (in 4.0 mm thickness)
Surface Treatment	PVDF, FEVE, Anodizing, Spectrum etc
PVDF/FEVE Color	Solid color, Metallic color, Wood color, Stone color, Brush
Warranty	15 years
Applicable Temperature	-40℃ to 80℃
Non-Combustible Test	AS 1530.1 / BS467 / EN13501 / ASTM E84
Package	wooden pallet,8 pallets / 20GP,16 pallets / 40GP

Key Benefits

A2 PVDF Aluminum Non-combustible Panel Key Benefits

A Grade Fire Proof
Flatness
Weather Resistance
Recyclable
Various Color Choices Meeing All Clients'options
Robust Durability
Full Machinability
Coil-coating Using PVDF Paint for Superior Finish, Color Integrity, and Performance

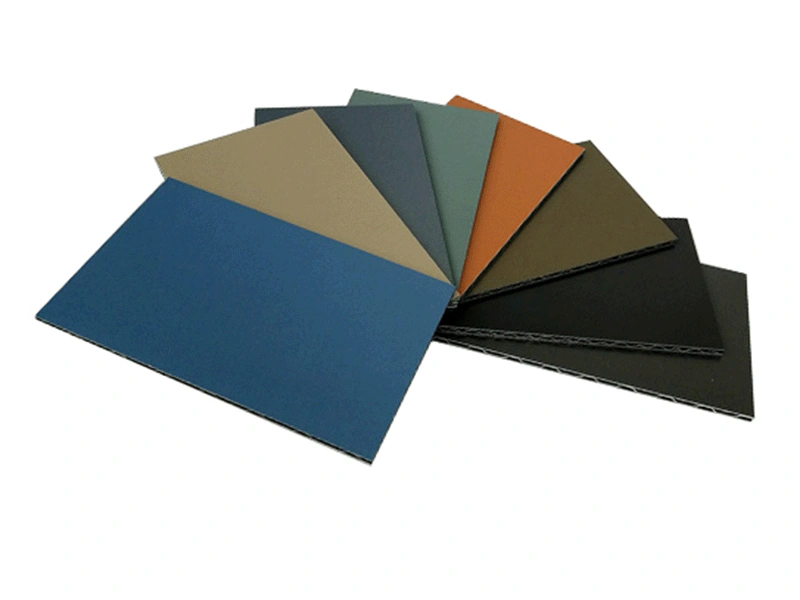

Color sample

PVDF
- Mountain Bamboo Pattern
- Willow Wood
- Scratch Resistant Walnut Wood
- Yellow Chestnut Wood
- Golden Sandalwood
- Huanghua Jian
- Yellow Core Peach Wood
- Red Walnut
- Ebony Wood
- Walnut
- Zebrano
- Fried Dough Twists stone
- Junwei Black
- Golden Flower and Tree
- Jinbei Stone
- Granite
- Black Ice Crystals
- Gold-plated hemp
- Travertine
- White Rock
- DarkEmperador
- Marble
- Dark Grey
- Light Gray
- Light Gray
- Green
- Green
- Maroon
- Blue
- Coffee
- Yellow
- Olive Grey
- All Black
- Mute White
- Milk White
- White
- AQ
- Pearl Champagne
- Pearl Black
- Pearl Silver
- Pearl Light
- Dark Grey
- Dark Grey
- Flash Silver
- Champagne Brushed
- Champagne Brushed
- Copper Wire Drawing
- Coffee Brushed
- Brushed
- Brushed
- Brushed
- Brushed
- Calx
- Metal
- Metal
- Metal
- Golden
- Golden
Anodizing
- Champagne Gold Oxide Brushed Finish
- Anodized Aluminum Oxide
