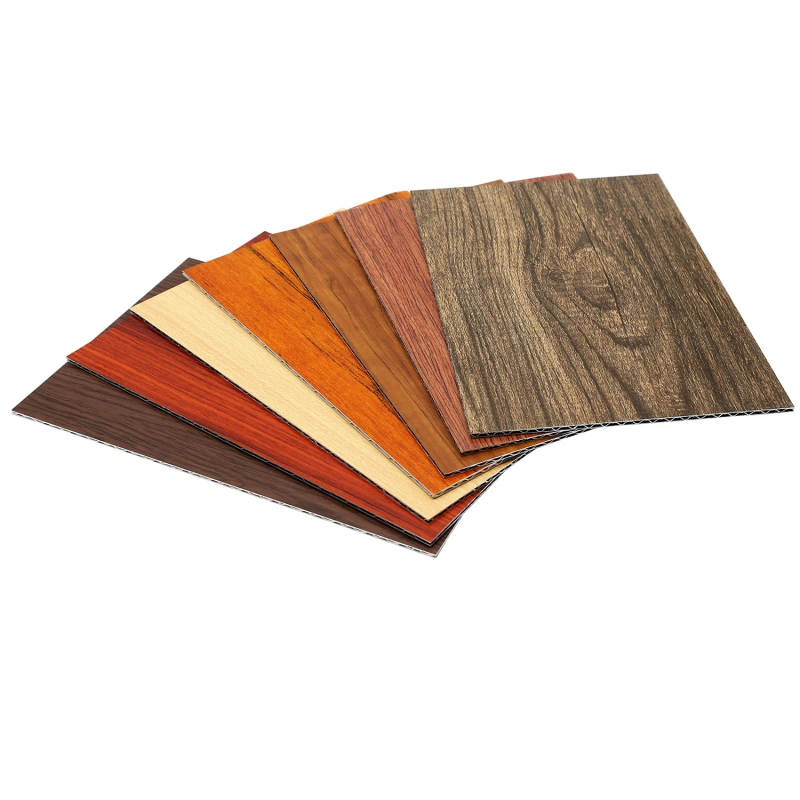

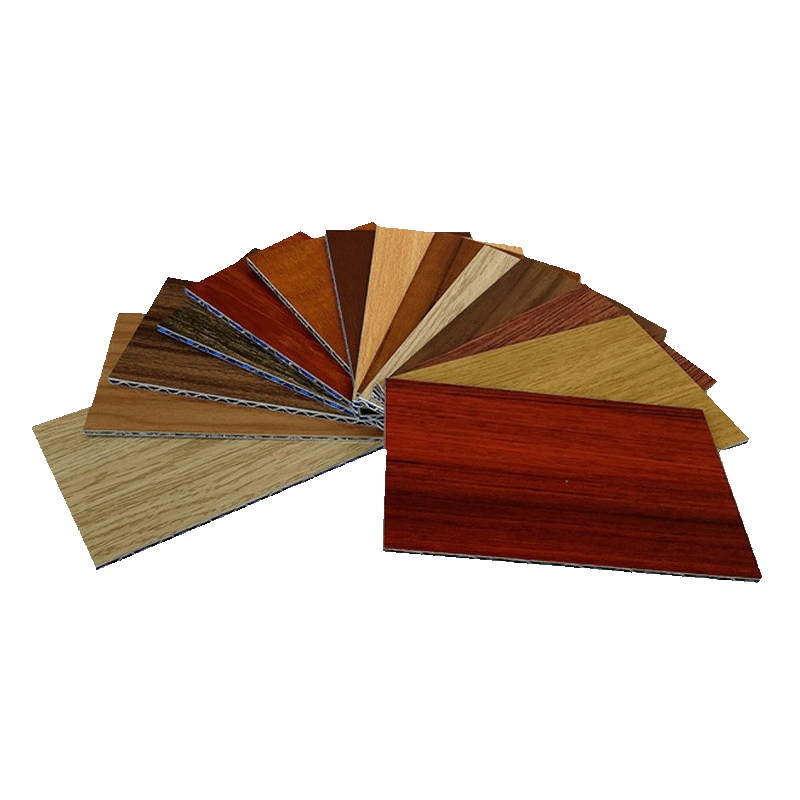

A2 Interior Aluminum Non-combustible Panel

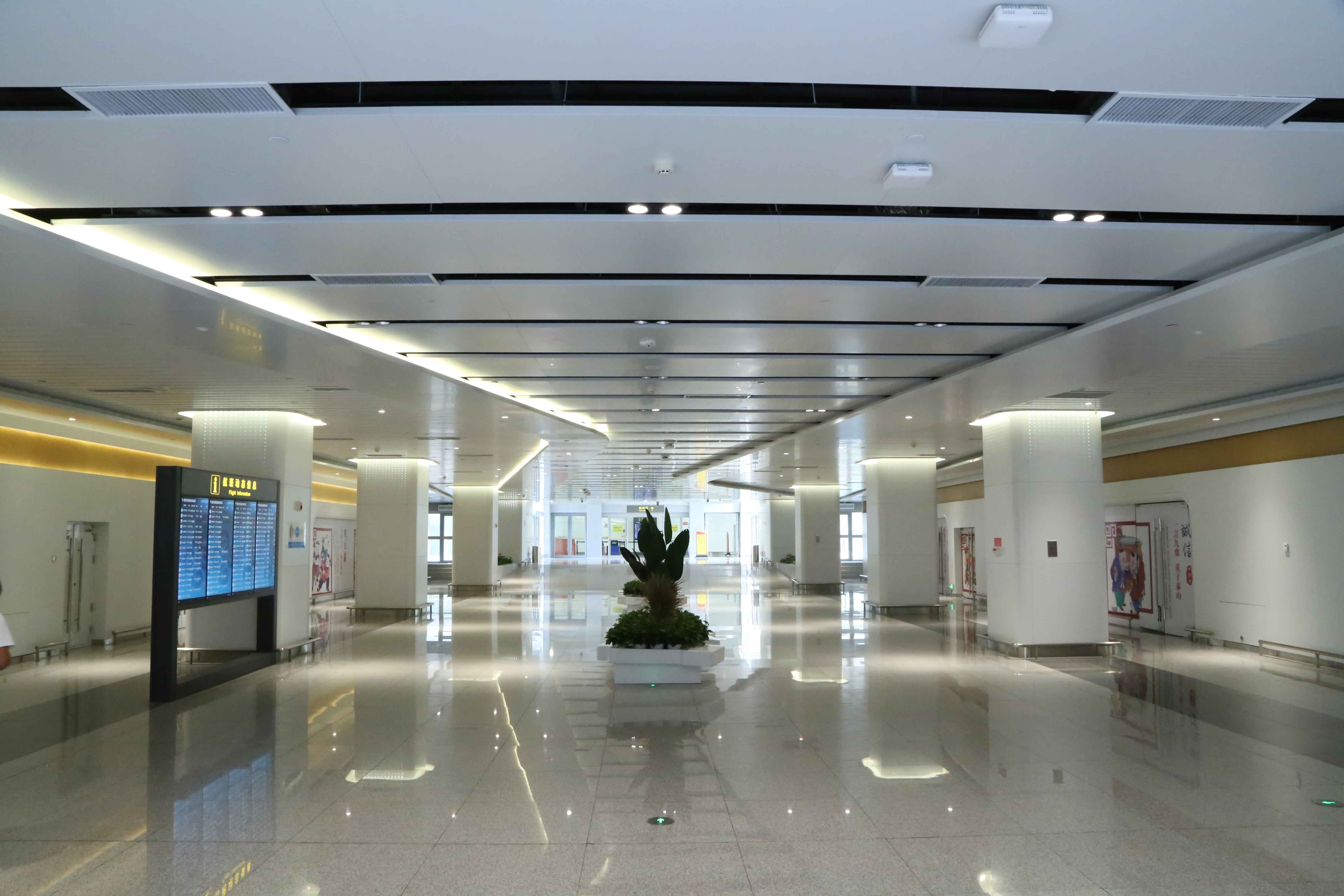

The aluminum non-combustible panel is a lightweight, durable, and highly rigid aluminum decorative panel perfect for all uses in architecture, transportation, furniture, and landmark buildings. It works great for both exterior and interior wall walls or home decoration
Our aluminum panels are 2.5 to 6.0 mm thick and consist of a non-combustible metal core laminated between two layers of different thicknesses of aluminum skin.
It's reached the A2 fire level, passed ASTM-E84, EN13501, the AS1530 fire test, and got certified.
Contact Us
Parameters
- ANP (aluminum non-combustible panel) is a 4mm Aluminium Core Panel that is fully non-combustible and suitable for external and internal applications where an non-combustible facade cladding solution is required. ANP panels are fully certified as an non-combustible building material under the Australian Standard, European Union, and United States Standard.

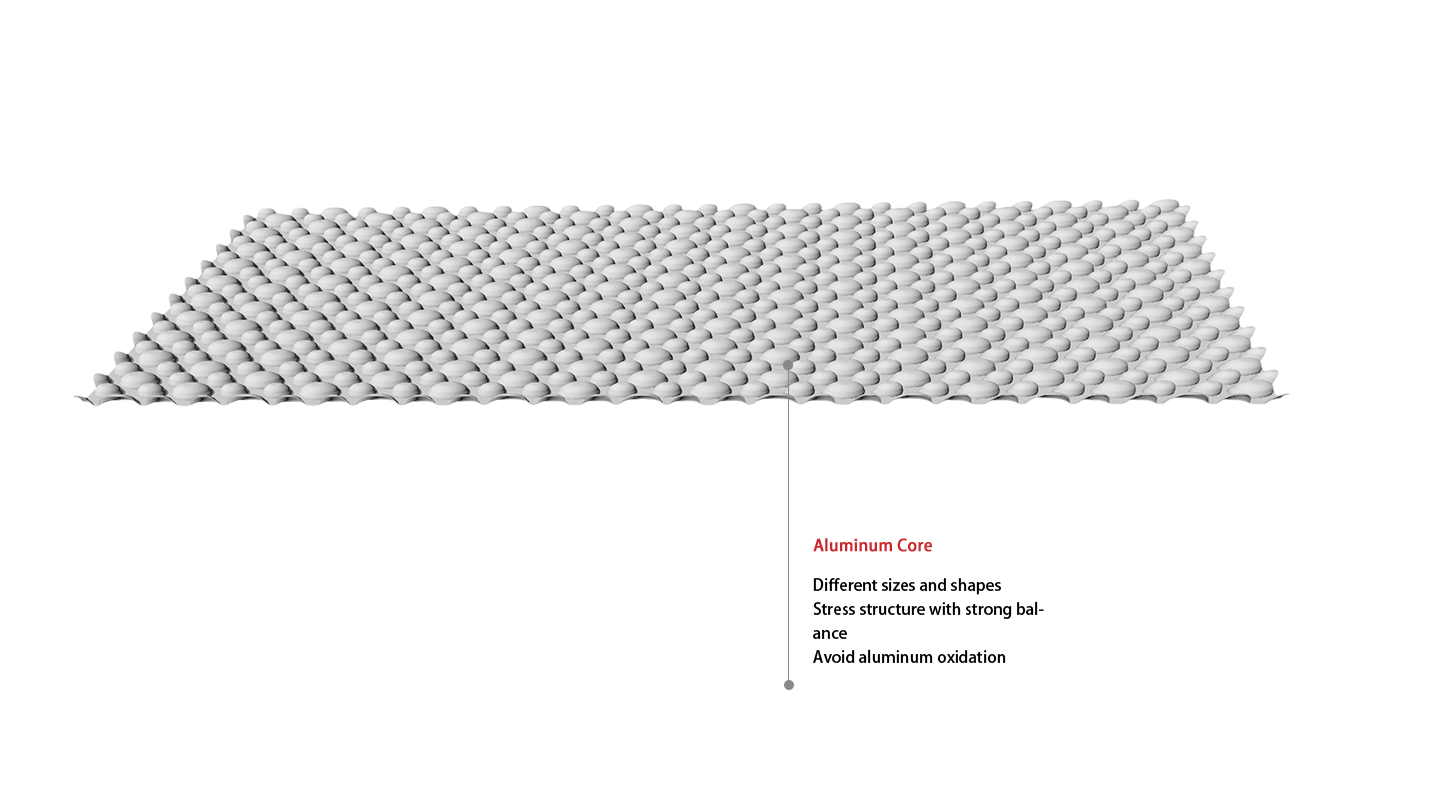

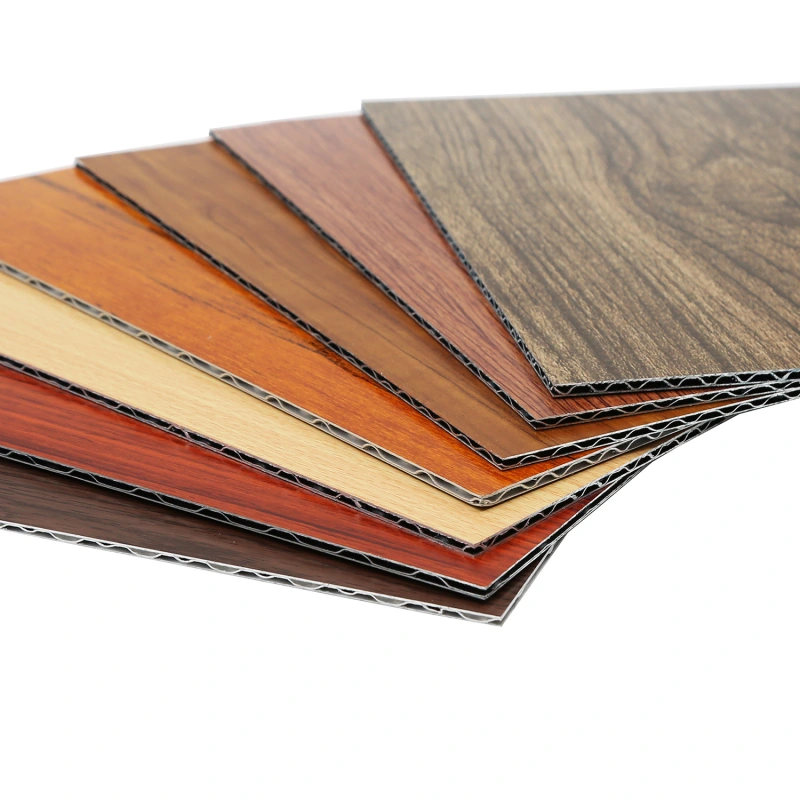

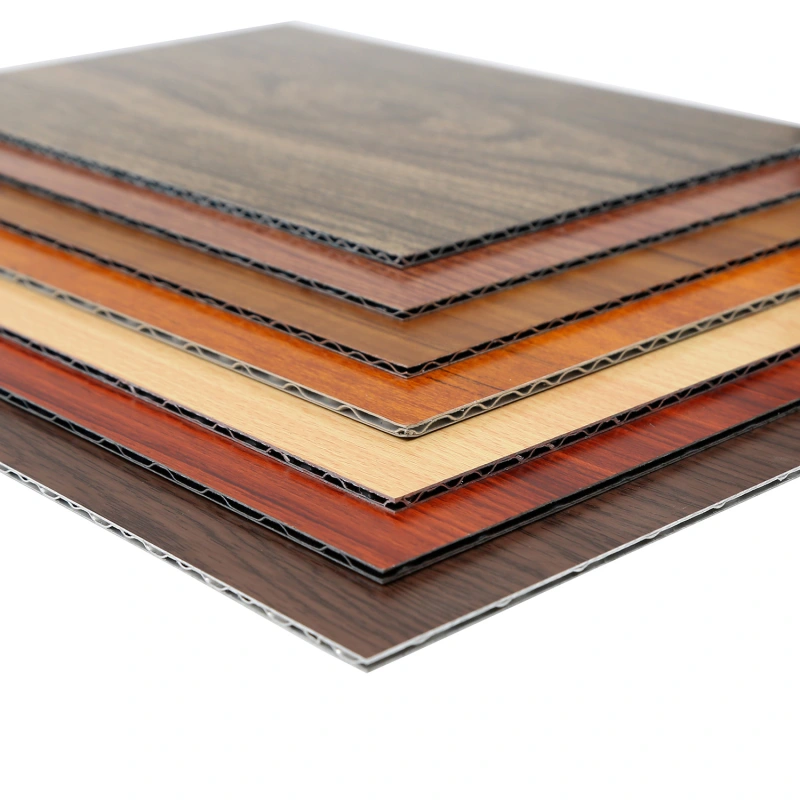

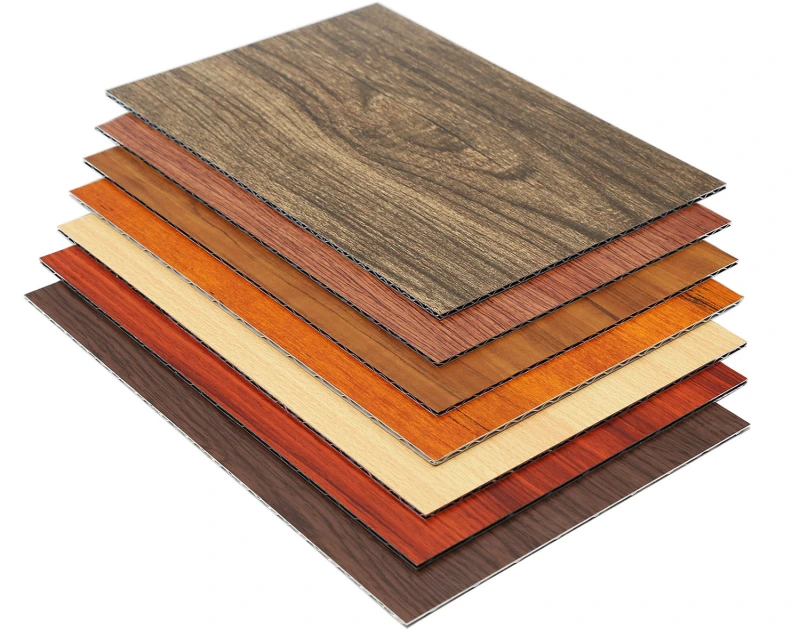

- ANP is manufactured from high-grade aluminum. The skins are separated by an ‘egg carton type’ aluminum core. Unlike other non-combustible and fireproof panels, ANP uses no mineral core fillers to achieve fire resistance and is therefore lighter in weight as well as being equal or better in terms of structural strength.

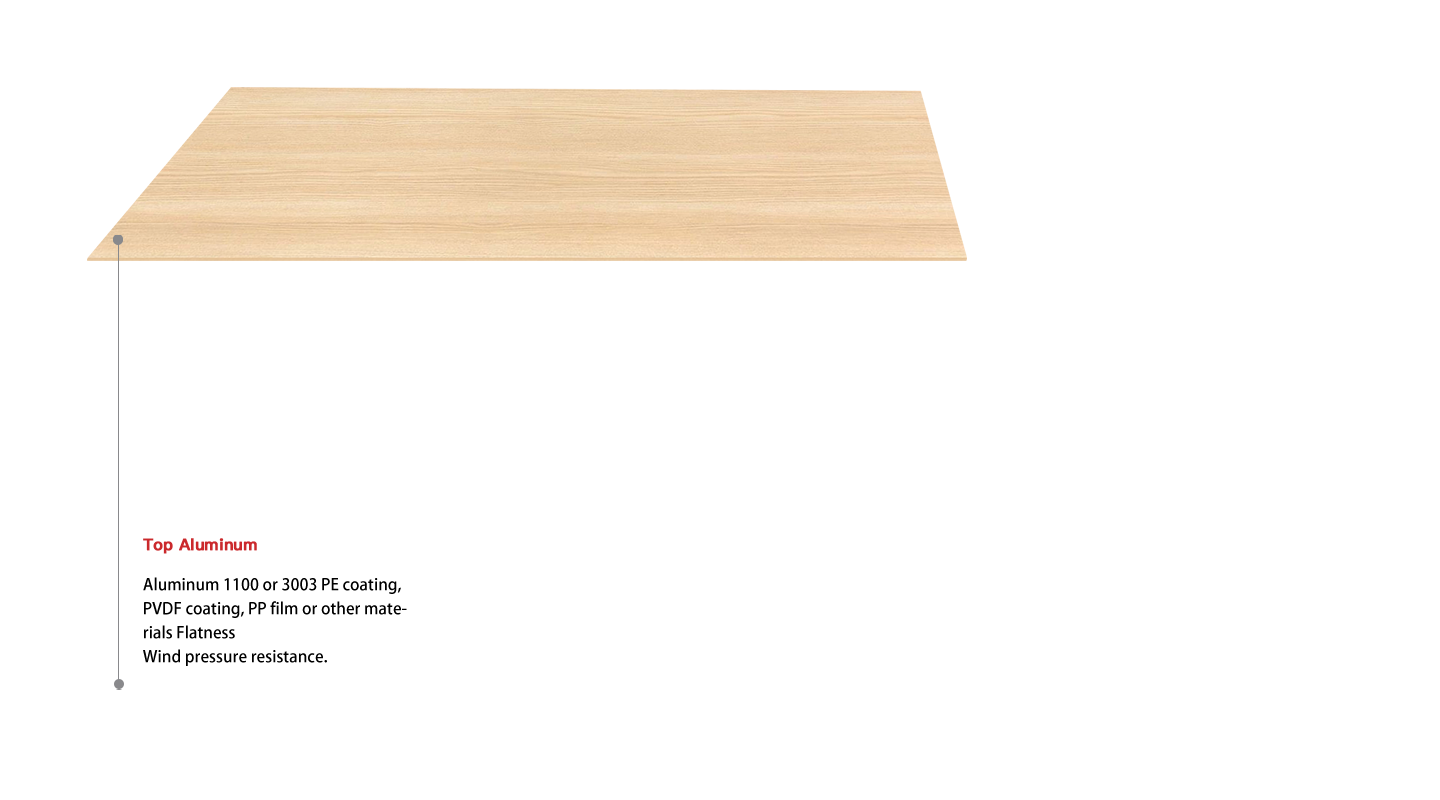

- ANP is prefinished on the front skin during manufacturing with PE coating in a wide range of standard colors. Customized and color-matched finishes are also available.
PRODUCT SPECIFICATION
ITEM |
DESCRIPTION |
| Product Usage | Fully non-combustible and suitable for internal applications |
| Material | Aluminum alloy 5052, 3003,1100 etc. |
| Fire Behaviour | A2 Fire Safety (EN 13501-1:2018) |
| Regular Size | 1250x2500mm,1550x3200mm |
| Standard Width | 1250 mm / 1550 mm |
| Length | Max 6000 mm |
| Overall Thickness | Regular thickness: 4.0 mm (2.5 - 6.0 mm available) |
| Top Aluminum Thickness | 0.5mm-0.7mm |
| Weight | 4.54kg / ㎡ (in 4.0 mm thickness) |
| Surface Treatment | PE, Anodizing, Leather, Cotton, PVC / PP film etc |
| PE Color | Solid color, Metallic color, Wood color, Stone color, Brush |
| Warranty | 10 years |
| Applicable Temperature | -40℃ to 80℃ |
| Non-Combustible Test | AS 1530.1 / BS467 / EN13501 / ASTM E84 |
| Package | wooden pallet,8 pallets / 20GP,16 pallets / 40GP |
Key Benefits
A2 Interior Aluminum Non-combustible Panel Key Benefits
- Passed A Grade Fireproof test and SGS test
- Environmentally Friendly
- Easy-to-install/Quick Installation
- High Quality
- Zero Formaldehyde
- Recyclable
- Various Color Choices Meeing All Clients'options
- Robust Durability
- Full Machinability
Color sample
-
New
-
3D Series
-
3D Series
PE-
Mountain Bamboo Pattern
-
Willow Wood
-
Scratch Resistant Walnut Wood
-
Yellow Chestnut Wood
-
Golden Sandalwood
-
Huanghua Jian
-
Yellow Core Peach Wood
-
Red Walnut
-
Ebony Wood
-
Walnut
-
Zebrano
-

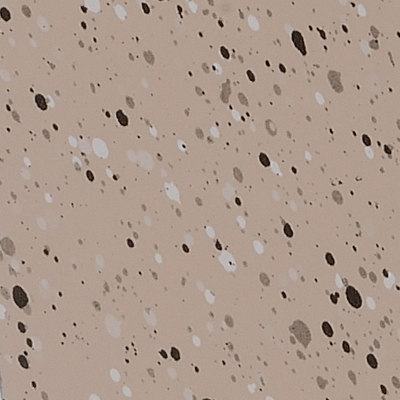

Fried Dough Twists stone
-

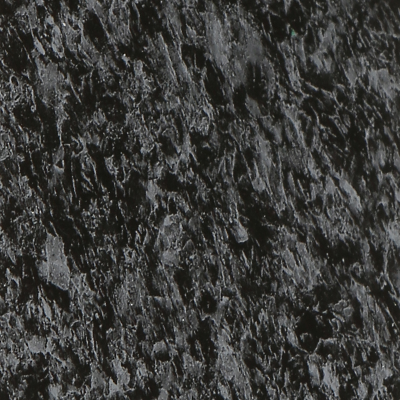

Junwei Black
-
Golden Flower and Tree
-
Jinbei Stone
-
Granite
-
Black Ice Crystals
-
Gold-plated hemp
-

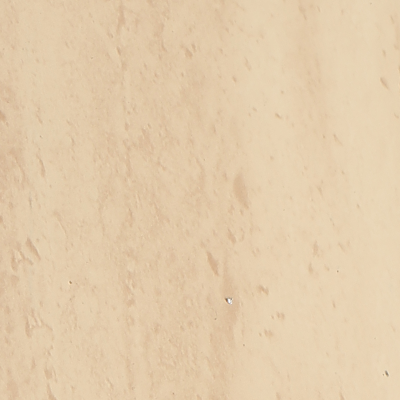

Travertine
-
White Rock
-
DarkEmperador
-
Marble
-
Dark Grey
-

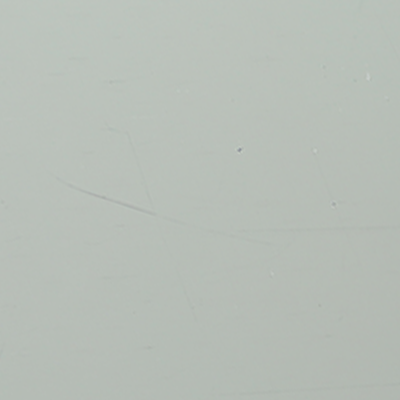

Light Gray
-
Light Gray
-
Green
-
Green
-
Maroon
-
Blue
-
Coffee
-
Yellow
-
Olive Grey
-
All Black
-
Mute White
-
Milk White
-

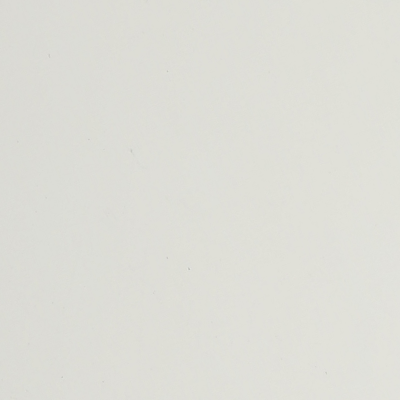

White
-
AQ
-
Pearl Champagne
-
Pearl Black
-
Pearl Silver
-
Pearl Light
-
Dark Grey
-
Dark Grey
-
Flash Silver
-
Champagne Brushed
-
Champagne Brushed
-

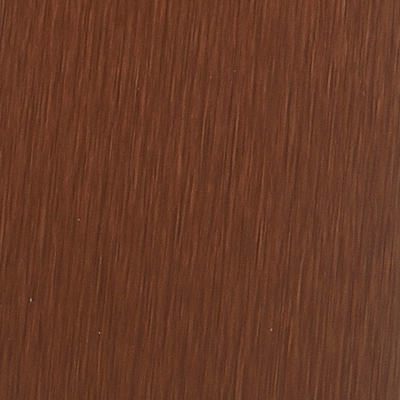

Copper Wire Drawing
-
Coffee Brushed
-

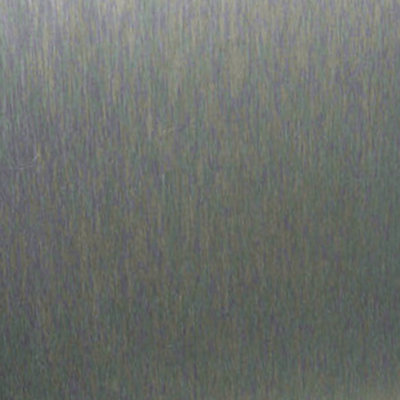

Brushed
-
Brushed
-
Brushed
-
Brushed
-
Calx
-
Metal
-
Metal
-
Metal
-
Golden
-
Golden
Anodizing-
Champagne Gold Oxide Brushed Finish
-
Anodized Aluminum Oxide
PVC&PP Film-
Technology cloth green wood gray
-
Technology cloth light white yellow
-
Technology Bumaya Grey
-
Technology cloth white pine green
-
Cotton
-
Cotton
-
Cotton
-

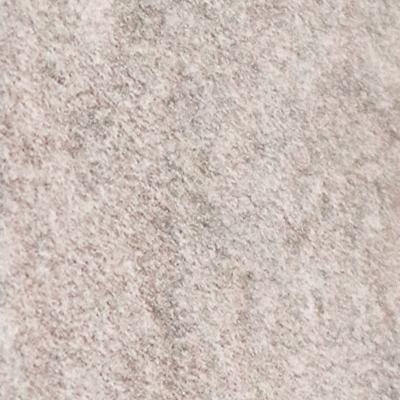

PP Star Falling
-
PP Star Alpha
-
PP Star Delta
-
PP Star Beta
CottonLeather -

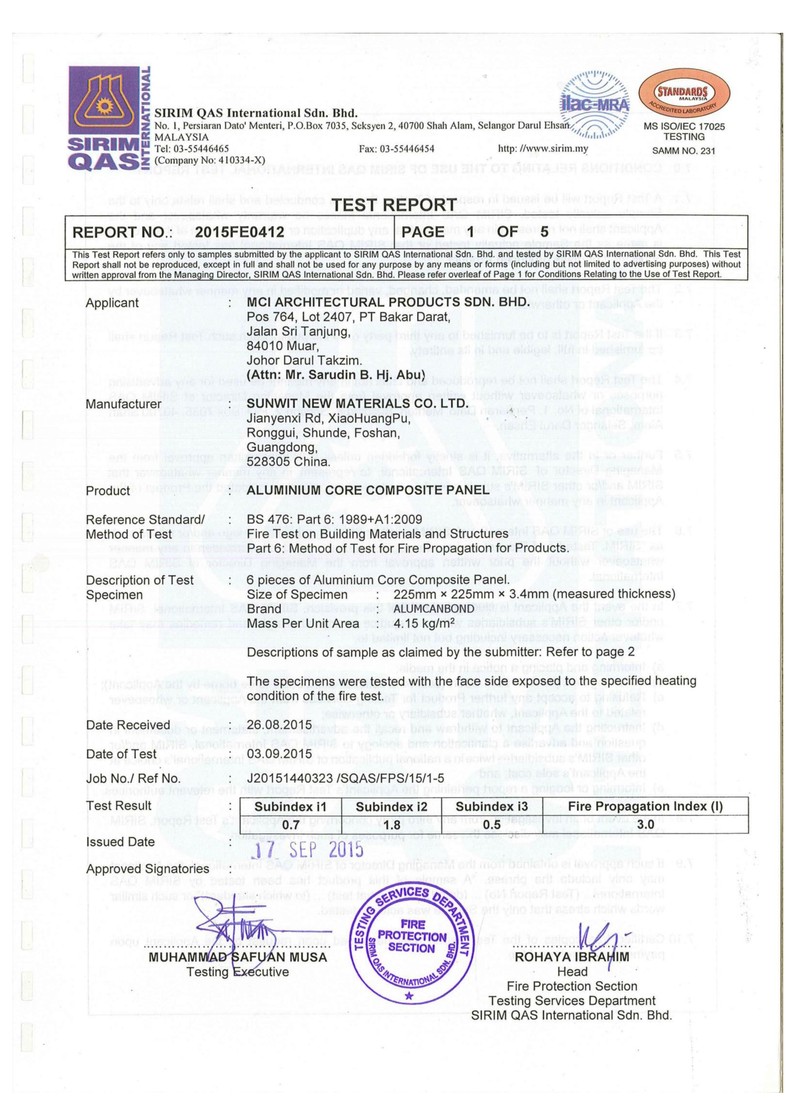

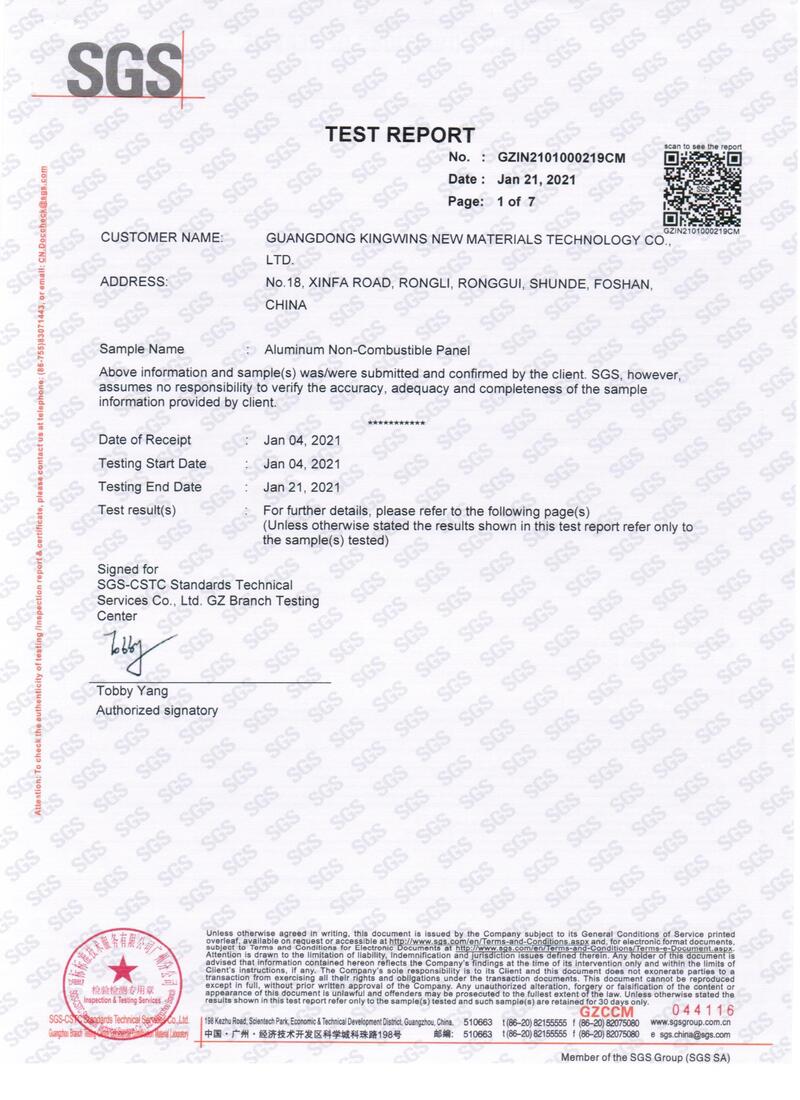

Certificate
Honor
We are passionate and always exceed your expectations.

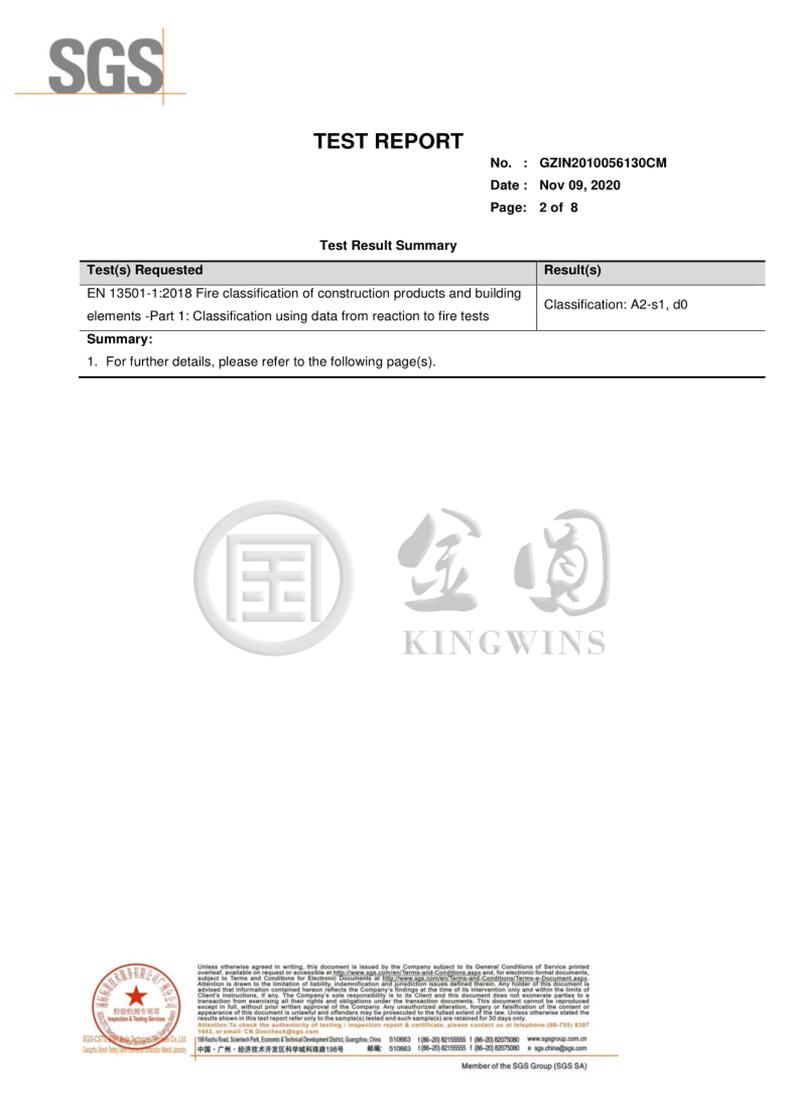

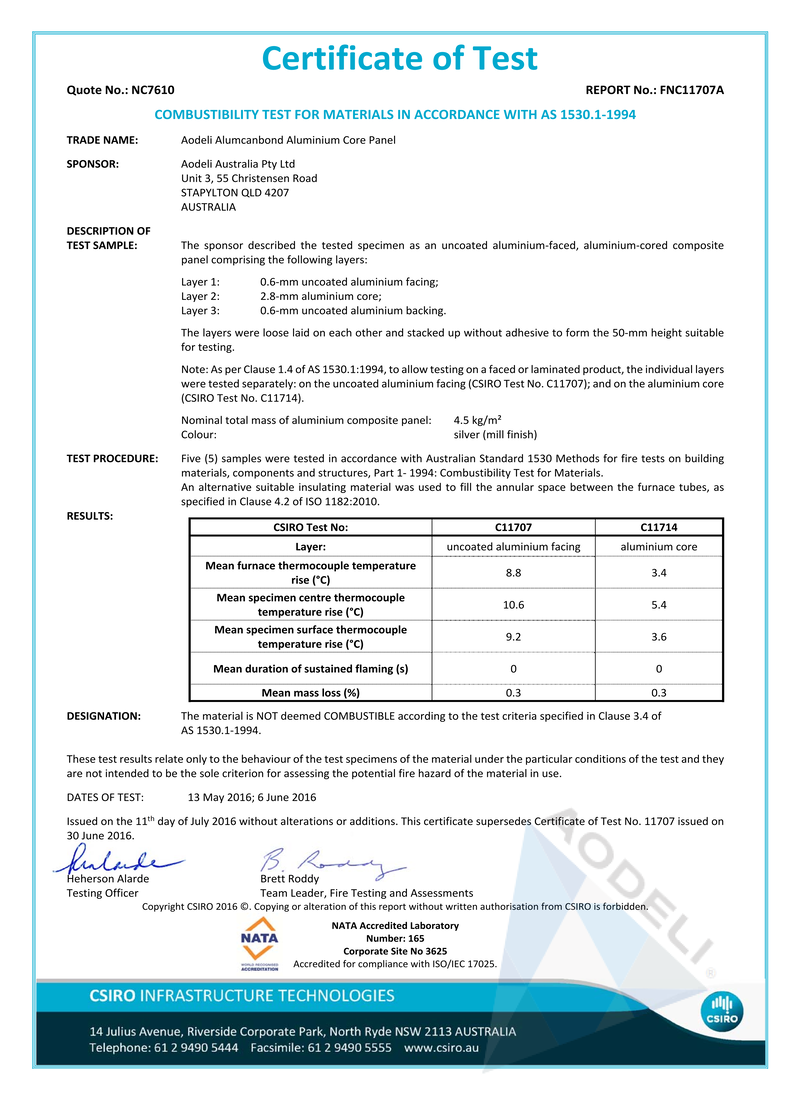

Product Certification
Company Certification
